PET BOTTLE PREFORM

Precision & Savings & Ease of Use

PET bottle preform injection molding machine,for the drinking water industry and food packing bottle industry

Start Your Project Today

Specification classification

PET bottles are currently the most mainstream product in the beverage packaging industry.

PET products are used on a large scale for the packaging of various foodstuffs because of their hardness, good toughness, high strength, bright appearance, environmental protection and non-toxicity, while bottle blanks are the primary products used to produce plastic bottles of various shapes and capacities.

Narrow mouth

Narrow mouth:

25mm, 28mm, 30mm, 32mm, etc.

These products are mostly used for the production of small volume liquid bottles.

Wide mouth

Wide mouth:

50mm, 53mm, 63mm, 73mm, 83mm, 90mm, 96mm, etc.

Wide-mouth products are mostly used for cans for solid goods.

Large capacity

Special large capacity:

55mm calibre 3-5 gallon drums

This is a large-capacity special preform commonly used in the drinking water industry

Multicolor

Multicolor:

Its populer this two years.

To the mould its almost similar.But the machine will need special

Characteristics of three preform

Narrow-mouth

Narrow-mouth products are used in the beverage industry, mostly disposable products, with a large output demand. And most of them are produced with pure PET material to ensure that the products are clean and non-toxic, without any adverse effects on the human body.

Wide mouth

Wide mouth products for solid goods such as candy, snacks, pharmaceuticals, the requirements for colour are more varied than for beverage bottles, and customers often require the addition of different colouring agents to adjust the colour to increase the aesthetics of the packaging or to meet the requirements of certain drugs to be stored away from light.

large-capacity

Special large-capacity bottles are used for the transfer of barrels of water, where the weight of the product is large and the final product must be recycled several times.

Multicolor

Its populer this two years.

To the mould its almost similar.But the machine will need special

How to produce bottle preform

Step 1: Determine the preform parameters

Step 2: Mold selection and design

Step 3: Raw material selection

Step 4: Machine selection

Step 5: Auxiliary machine selectionpre

Like all plastic products, bottle embryo is a product formed by injecting molten materials into the mold through the injection molding machine.

However, according to the characteristics of PET materials, there are several special requirements in the production process.

It is mainly divided into the following steps

Step 1: Determine the preform parameters

First, determine the size, weight, volume and output of the bottle preform.

In this way, we can specify the cavities and size of the mold cavity according to the above requirements.

Step 2: Mold selection and design

Choice of mould type: The preform moulds are produced using hot runners. The moulds are divided into needle valve type and self-locking type, the price of the needle valve type is higher than the self-locking type, from the naked eye, the tail of the bottle produced by the self-locking type will be longer than that of the needle valve type, the difference between the mould and the finished product can be seen in the following chart.

Step 3: Raw material selection

PET material for injection moulding auxiliary machine requirements: PET material is very hydrophilic, in the natural environment is very easy to adsorb water molecules, wet raw materials in injection moulding production will cause the product to appear white mottled, or scorched yellow discolouration extremely affect the appearance, so before production must first use the dryer for 3-5 hours drying treatment of raw materials. In addition, as the bottle moulds are hot runner moulds, the cooling system is an essential aid to the production of PET products as the temperature of each cycle must be precisely controlled.

(white brown photo of unqualified product)

Step 4: Machine selection

Now we already know the preform size, weight, volume and output,

So we can calculate the injection weight,and the machine size for mould.

Finally we can choose the machine tonnage according to those details.

Step 5: Auxiliary machine selectionpre

The auxiliary machine,have to according the mould cavities,machine size.

Normally will need: Auto loader,Hopper dryer,Dehumidifiers,Chiller,or Central conveying system.

Haichen Machinery have the advantages of high precision, high productivity, long life and low energy consumption, and the products will cover all the equipment you need for production and can be a one-stop solution for your production needs.

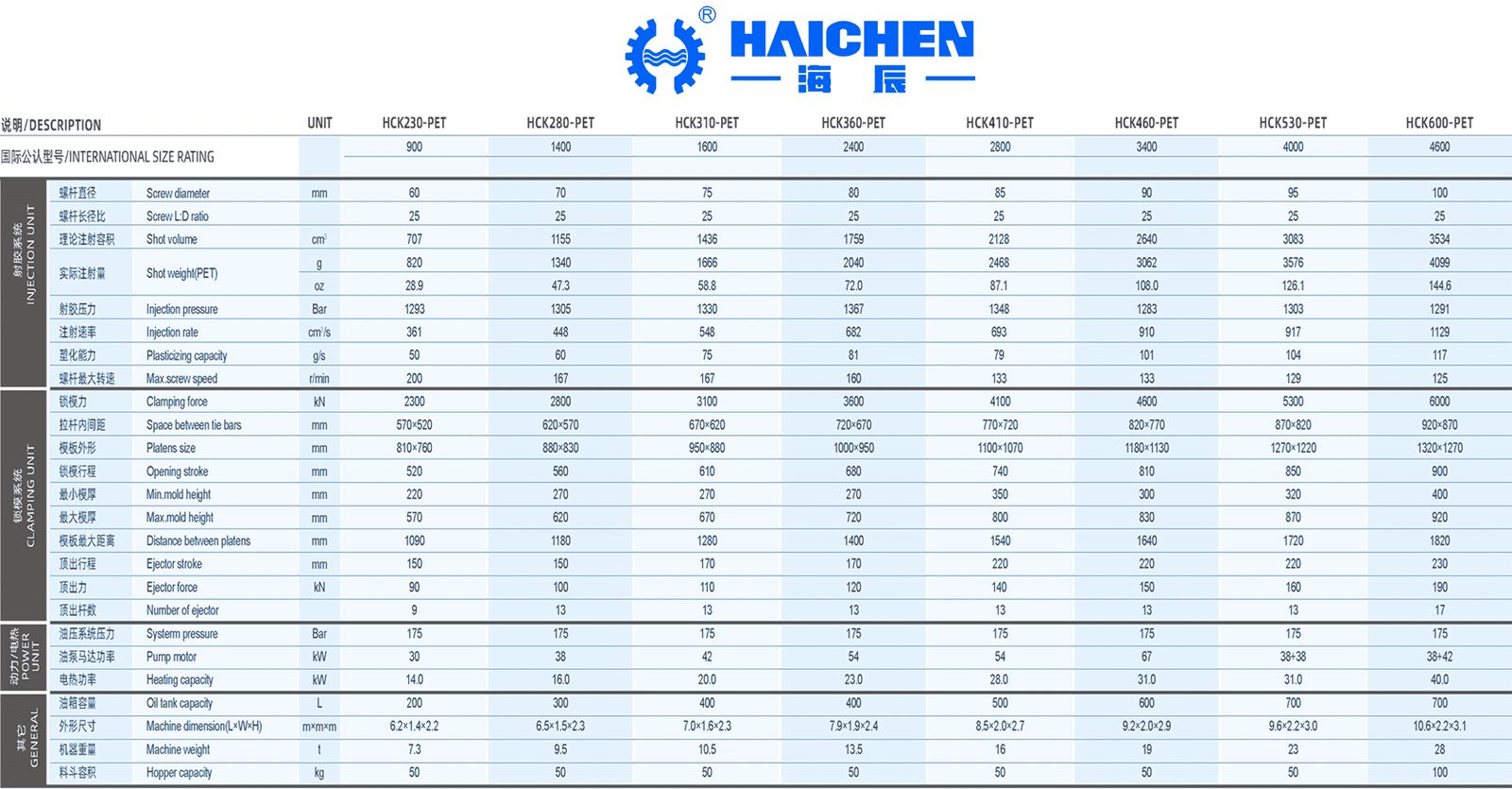

Parameter of Haichen PET machine

The case of Bottle preform production

If you have a related production requirement, we will be happy to assist you. (Set up enquiry)

Narrow mouth
Wide mouth
Large capacity

Our Injection Molding Success Stories

With a focus on quality, reliability, and expert support, we are committed to helping businesses optimize their production processes and achieve their goals. Join our growing list of success stories and experience the difference that our injection molding machines can make for your business.
