How to produce the plastic cloth hangers
Production line for plastic cloth hanger

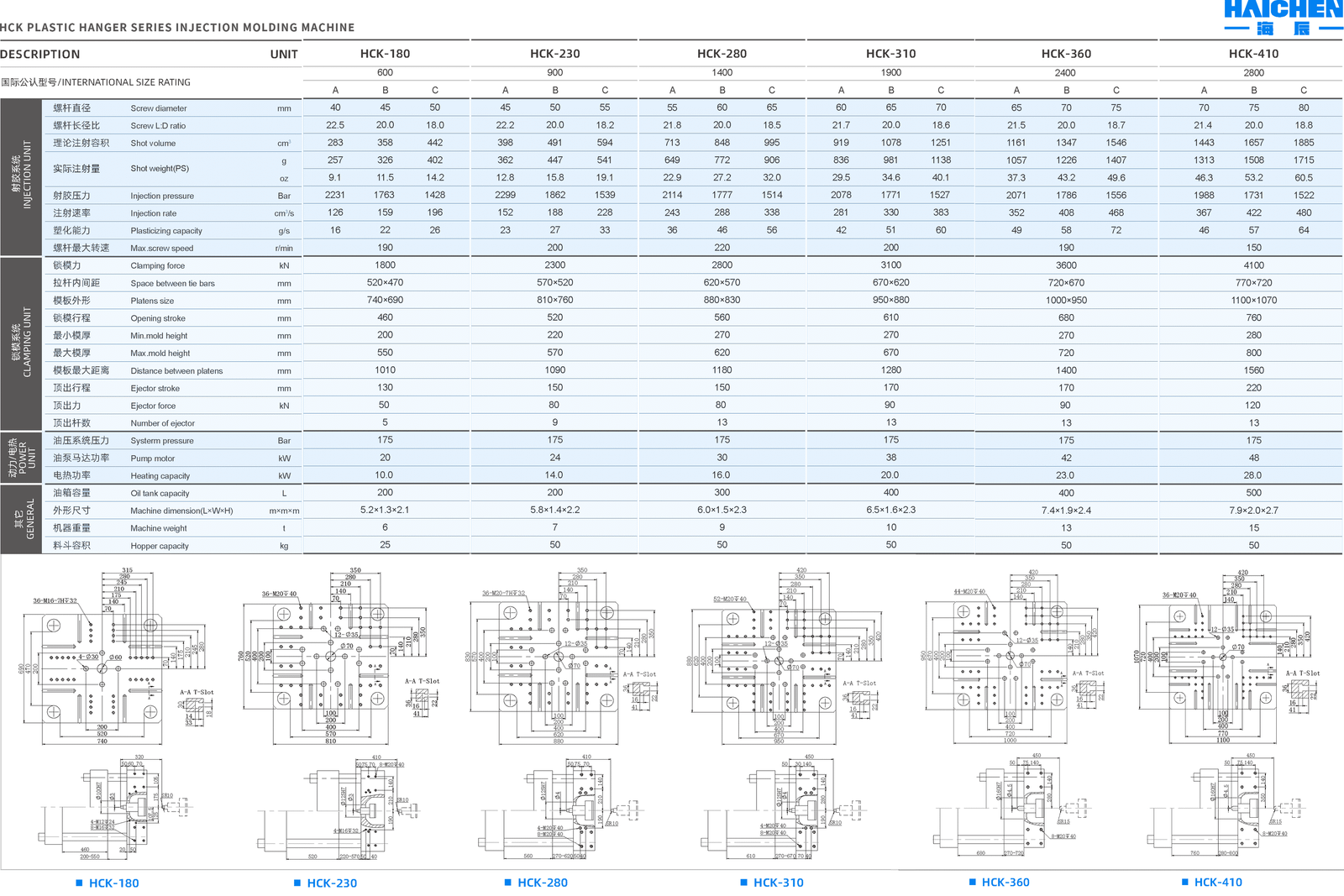

Haichen 180T -400T injection molding machine
Plastic cloth hanger
Compared with wooden hangers and metal hangers,plastic hangers are light and cheap, can be used in dry and wet conditions.
Also the plastic cloth hanger have strong customization ability: they are easy to shape, good in color, and rich in color.
So they have become the choice of many clothing stores and families.
Moreover, its cost is very lower.
Plastic hanger
Matel hanger
Wooden hanger
Classification of plastic hangers
Disposable hanger
children's hanger
Trouser hanger
Sock hanger
Suits hanger
The classification of hanger molds is mainly based on the use of hangers, generally including women’s hanger, suit hanger, children’s hanger, pet hanger, bra hanger, etc.
In this way, there will be many different types of clothes hangers, which will be very confusing
However, if we distinguish from the production process, we can simply classify the plastic hangers according to their shapes,There are two types of plastic hangers:
-Light type:
It has a flat and long frame body, a relatively narrow cross section of the frame shoulder, and a small inclination of the frame shoulder. Zhaoxing is light and thin, which is suitable for airing light clothes.
-Heavy type:
The other is just the opposite. It has a wide and short frame body. The cross section of the frame shoulder is wide, and the inclination of the frame shoulder is large. The shape is thick. It is suitable for airing heavy and orthodox suits.
Hanger mould/Die selection
According to the difference of modeling, we can customize the mold.
Generally, clothes hanger molds can be made into multi cavity molds, and the first mock examination can produce multiple clothes hanger commodities. At present, in the process of mold processing, the majority of clothes hanger molds produce one out two and one out four.
Light and compact, the number of cavities in the mold is usually a little more.
Two cavities hanger mould
6 cavites plastic hanger moulds
Two cavities suits hanger mould
plastic hanger clips moulds
How to chose the injection molding machine for plastic hanger
The coat hanger is large in appearance but light in weight.
Therefore, when selecting a machine, you generally only need to select the machine according to the size of the mold. Make sure that the mold can be put into the four tie bar of the injection molding machine. The weight of the injection is usually sufficient.
How to produce the plastic cloth hangers
The production of plastic clothes hanger is the same as the conventional injection molding process.
Injection molding:
The granular or powdered plastic raw materials are sent into the barrel from the hopper of the injection machine for heating and melting. After plasticization, the material is compressed and moved forward under the pressure of the screw. It is injected into the closed mold cavity with low temperature at a fast speed through the nozzle in front of the barrel. After cooling and shaping, open the mold to take out the coat hanger.
The clothes hanger can be molded by injection molding, which can be roughly divided into the following six steps:
Mold closing – injection – pressure maintaining – cooling – mold opening – plastic hanger removal.
If the above technologies are repeated, products can be produced continuously.
The injection production of plastic coat hanger is characterized by that plastic products with complex shape and accurate size can be molded at one time; The same set of moulds can be used to produce the same products in batches; The product does not need further modification or processing; Good production performance, short molding cycle, automatic or semi-automatic production, high efficiency.
