Haichen Machine
One-stop solution for plastic injection molding projects
YES ! We can do !
Packing Industry
Its huge market,the injection molding machine can some of parts,like:PET bottle,caps,container…
The speed for whole cycle will be important.
Home Appliances
Household appliances is a major application area of injection molding products, almost all household appliances have used plastic, but different types of plastic used in different appliances.
Two colors
Two-color injection molding is a molding process in which two different materials are injected into the same set of molds, thus realizing the molding of products formed by two materials. The two materials are either different in color or different in softness and hardness.
Toys
Plastic toys play a leading role in the toy market. Injection molding is one of the molding processes.
It has the characteristics of high product quality, stable size, high finish and high production efficiency. It is suitable for toys with high quality requirements, many assembled parts, thick wall thickness and large batch.
Auto parts
Automotive plastic parts are mainly interior and exterior parts and key automotive plastic components.
The pressure configuration of the clamping uint, and the design and manufacturing process of the screw are very demanding
Kitchen Applocations
In industrial products, kitchenware injection molded products include: garbage cans, bowls, buckets, jugs, tableware, and various containers…
The World of Applications
No mater what appliances you are in,we can support you with pressional solution
Why Haichen
- One-stop solution
- Easy to use
- Stabilization
- No leaking on the pipes
- Enagry saving
- Variety
One-stop
We can supply the whole production from raw material pellets to finished products.
Mould design
Machine choose
Auxilary device
Robots
Easy to use
Haichen will test the mould on the machine,and keep all of the setting as recorder on the contorller,then ship the machine.When you recived the machine and mould,just find out the recorder on the machine,and start the machine without setting.
- 21 languages choice one the controller
- 200 sets moulds setting can be kept on machine records
- Auto,semi-auto operation

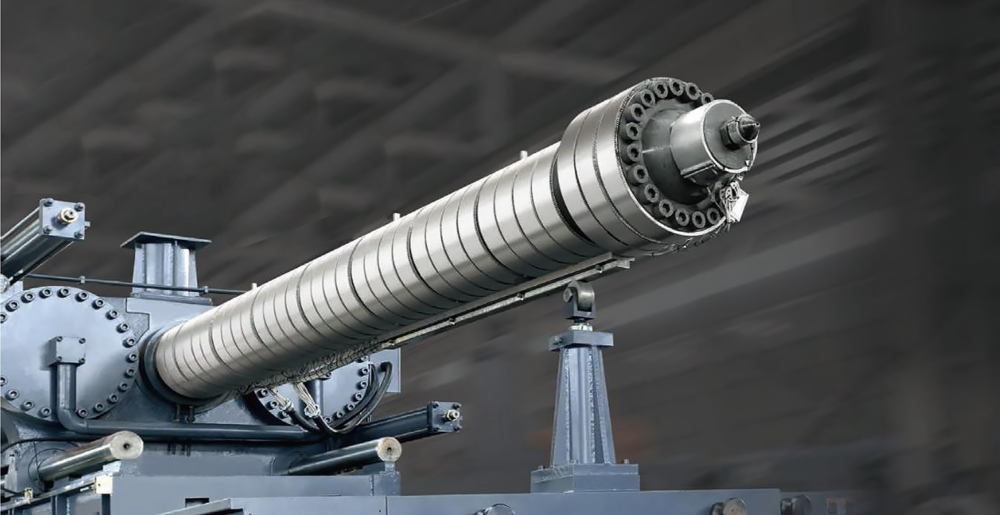

Double rod injection structure
- Double rod injectio structure,injection more stable.
- Injection cylinder and drive shaft integrated to ensure the injection machanism coaxiality and straightness.
- Injection adopts high precision linear to reduce the load of storage stable back pressure.
Stabilization
The base foot of the moving plate is enlarged, which makes the machine more stable in opening and closing the mold.
No welding in the clip sleeve link
No welding in the clip sleeve link
No leak
energy-saving
Servo energy-saving injection molding machines: there is no extra energy consumption due to output volume changes according to load alteration. In the phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy
More options
- Haichen’s specialty machine:
- PET injection molding machine
- PVC/UPVC injection molding machine
- muti-color injection molding machine
- … …
Haichen machine details
Injection System
APID temperature control, precise temperature control of barrel.
There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics, and the choice of product.
Two-guided bar supports，double-balanced rapid injection.
The high-torque hydraulic motors offer a stable plasticizing capacity
High-precision electronic device position detection enable
accurate measurement
Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding
Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti-drooling and automated auto purge.
Expected to prevent cold-start function to ensure that the screw, barrel will not be harmed. Stability of the injection unit
Two-metal screw with high wear resistance,suitable for glass fiber reinfoced plastics.
Stainless steel screw for hear-sensitive high viscosity material,like UPVC,CPVC
High mixing screw,suitable for the materials with high requirements of mixing and plasticizing,like PP,ABS,TPU
Two-thread, double-lead screw,with better plasticizing capacity and faster speed of plasticizing,which is suitable for large machine
Clamping Unit
Security doors fitted with hydraulic, mechanical and electrical interlocking tripe safety device.
When the safety door is open, the machine cannot clamp.
Low pressure mold protection device to prevent damage to platen
Plywood, frame, the bridge, and template attached structure, the finite element analysis.
Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions
Flexible tie bars nut eliminates fatigue fracture, assure the working life of tie bars
Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment
High-precision electronic detection device, multi-stage control of opening stroke, speed and location, location accuracy
Controller
All-digital control system uses dedicated controller, multiple CPU processing division, a multi-functional automatic fault detection, alarm system, certificates 99 mold of processing procedures, with remote control interface. System is of high stability and responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces
CONFIGURATION
Item
Standard
Optiinal
Controler
Techmation
Taiwan
Keba
xxxx
Hydraulic Pump
Hytek
China
Eckerle
Germany
Diectional Valve
Sumitomo
Japan
Eckerle
Germany
Motor Diver
Sumitomo
Japan
Eckerle
Germany
Hydralic Motor
Sumitomo
Japan
Eckerle
Germany
Electronic foot
Sumitomo
Japan
